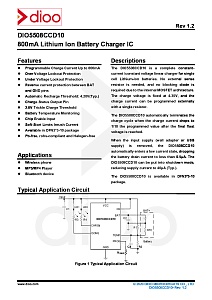

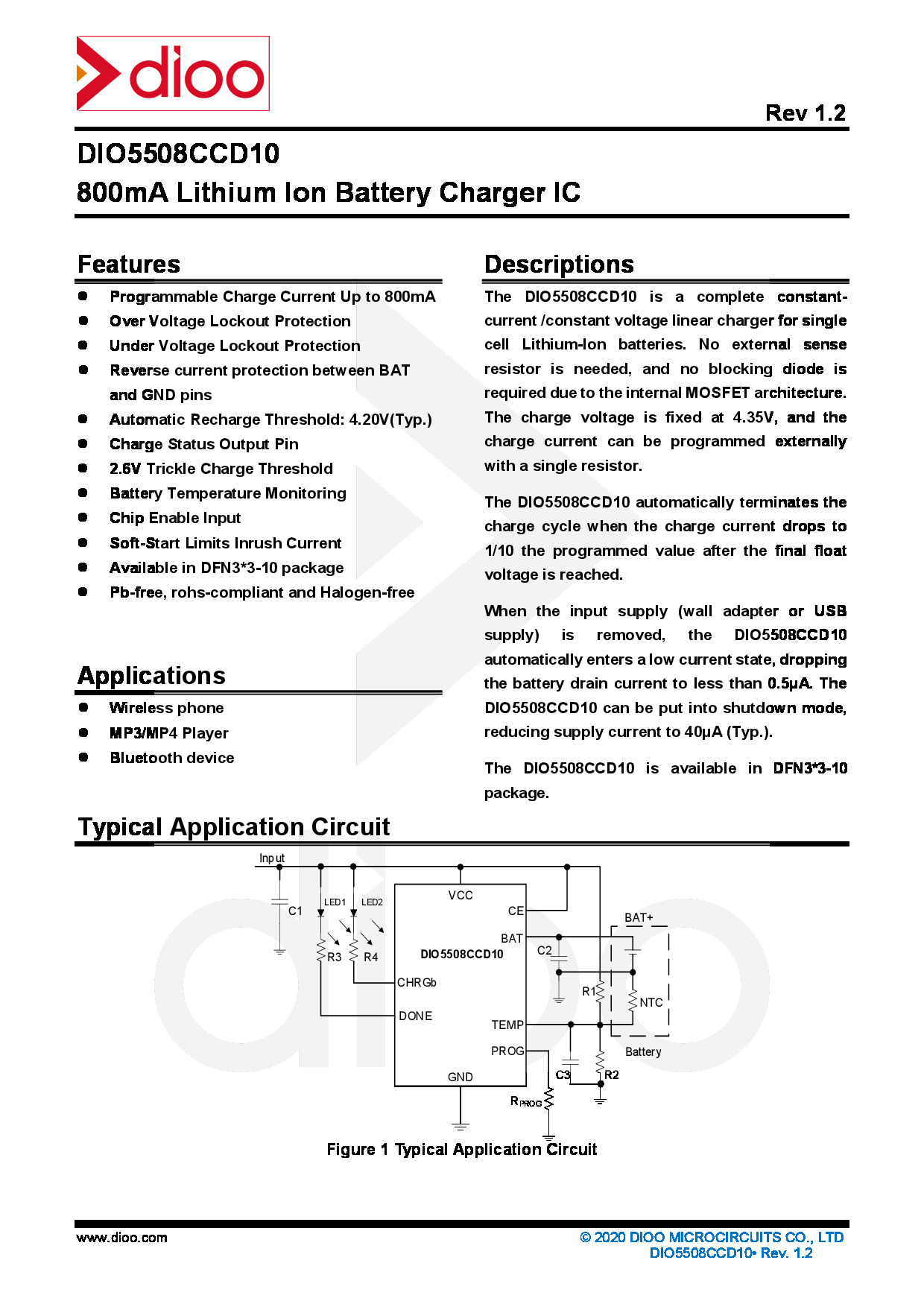

DIO5508CCD10
DIO5508CCD10
800 mA Lithium Ion Battery Charger IC
Корпус: DFN3*3-10
Operating Temperature Range (℃): -40~85
Производитель DIOO Microcircuits
Vin (max)(V): 5.5
Charge current (max)(A): 0.8
Ibat(done) (μA): 136
Absolute max (V): 10
Vbat(reg) (V): 4.35
Vovp (V): 6.2
Control interface: IO
Operating Temperature Range (℃): -40~85
Vin (min)(V): 4.65
Vrch (V): 4.2
Vlowv (V): 2.6
NTC terminal: Y
Features: OVP/OTP/SCP/PG
