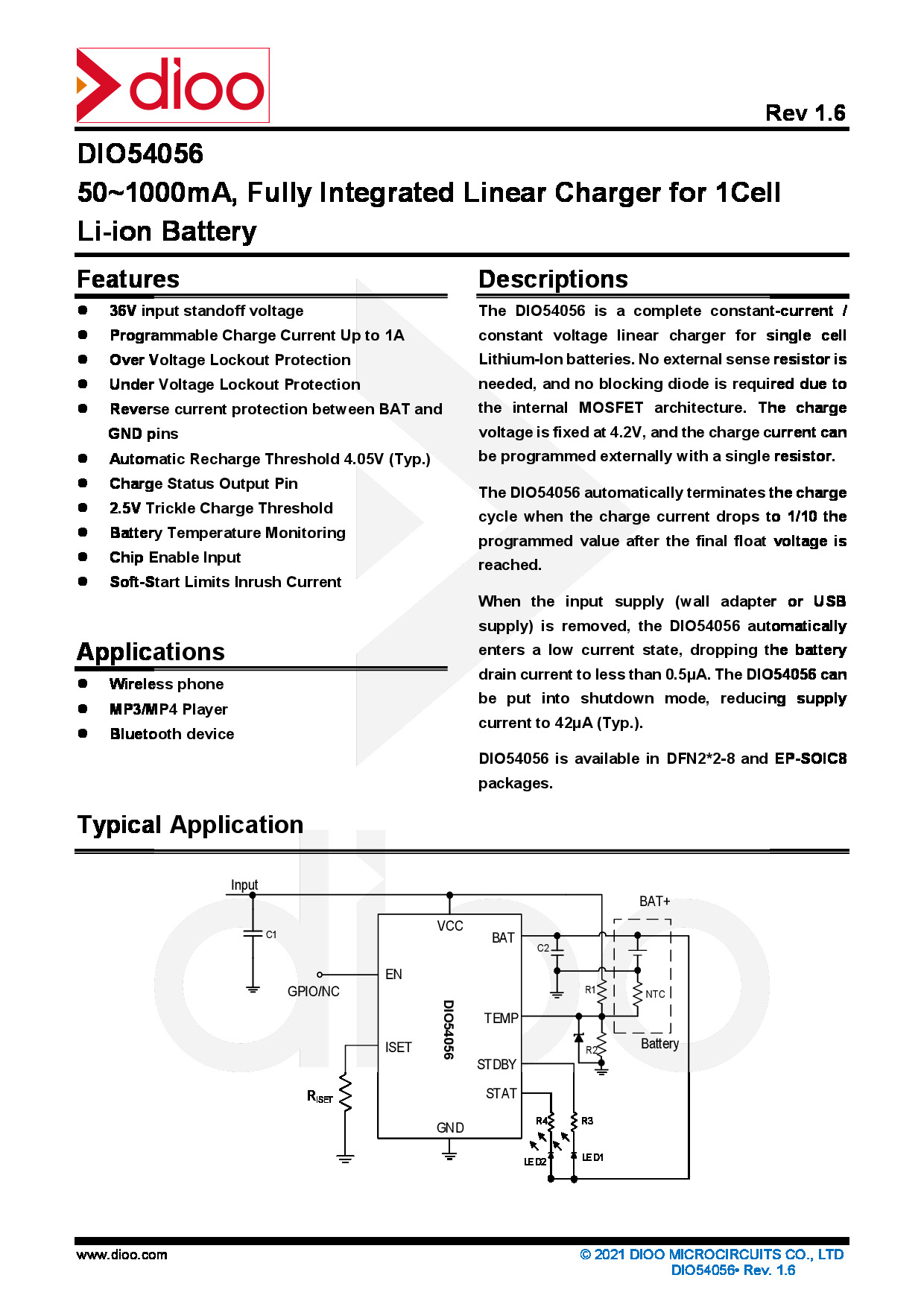

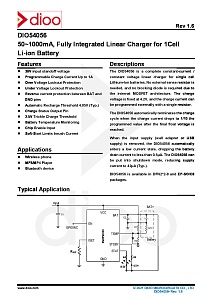

DIO54056PN8
DIO54056PN8
50~1000mA, Fully Integrated Linear Charger for 1Cell Li-ion Battery
Корпус: DFN2*2-10
Operating Temperature Range (℃): -40~85
Производитель DIOO Microcircuits
Vin (max)(V): 5.5
Charge current (max)(A): 1
Ibat(done) (μA): 80
Absolute max (V): 36
Vbat(reg) (V): 4.2
Vovp (V): 6.4
Control interface: IO
Operating Temperature Range (℃): -40~85
Vin (min)(V): 4.5
Vrch (V): 4.05
Vlowv (V): 2.5
NTC terminal: Y
Features: OVP/OTP/SCP/PG
