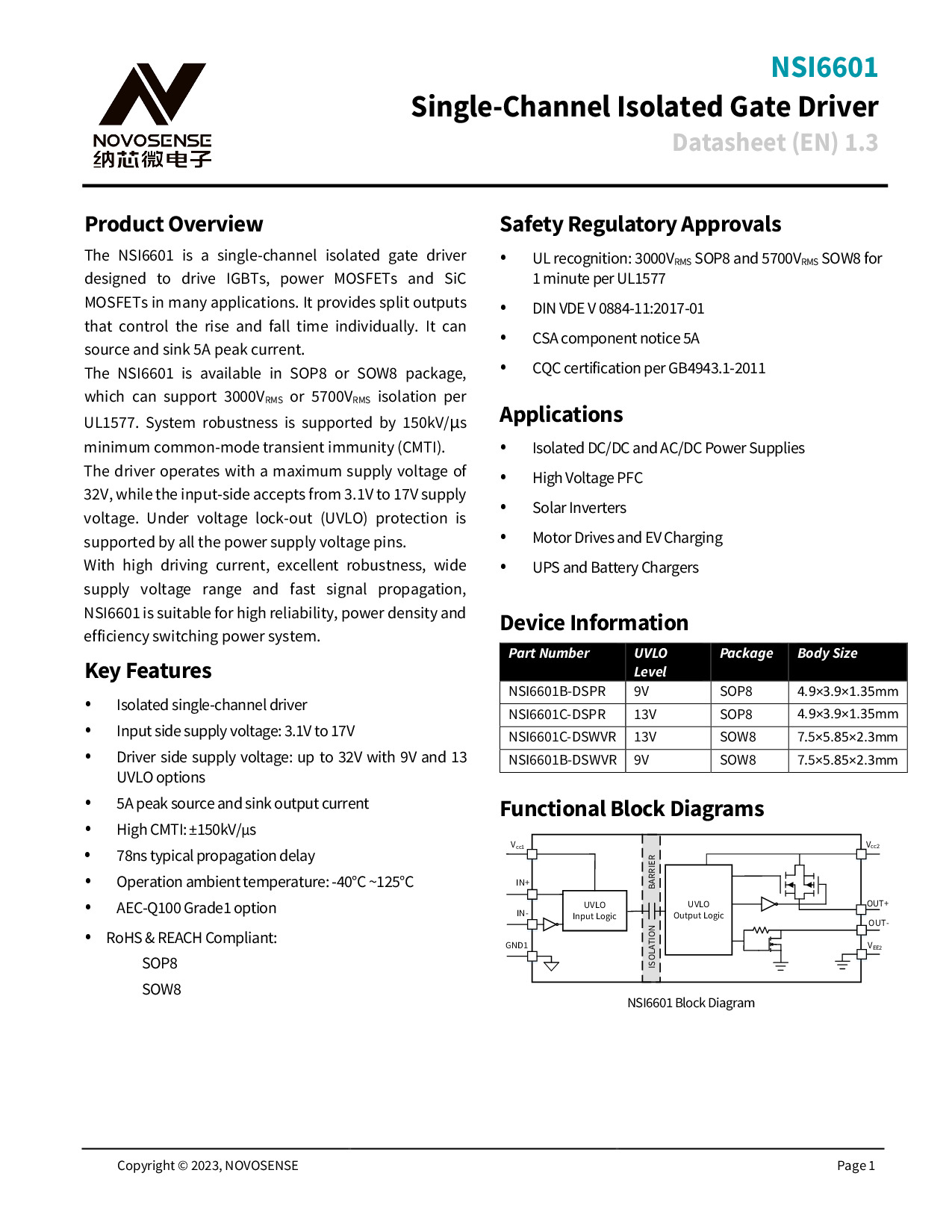

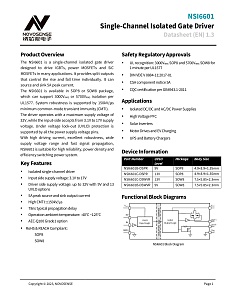

NSI6601C-DSWVR
NSI6601C-DSWVR
Single-channel Isolated Gate Driver
Корпус: SOW8
Operating Temperature Range (℃): -40~125
Производитель Novosense Microelectronics
Peak Output Current (A): 5/-5
VCC UVLO Threshold (V): 13
Input Side VCC Voltage (Max)(V): 18
Output Side VCC Voltage (Max)(V): 35
Isolation Withstand Voltage (kV): 5.7
Insulation Grade: Reinforced insulation
Feature: Separate output
Operating Temperature Range (℃): -40~125
CMTI(Min) (kV/us): 150
Qualification: Industrial
